Description
Our biaxial-elongation blow molding machine can produce up to 2 liters not onlynormal bottles but heat-resistant bottles capable of
molding in the heat over 90°C firstly in Korea.
It maximizes production rate per a mold by utilization of the german Bosch servo motors unlike other equipment which is mainly operating only with one motor.
Also, it is suitable for the small batch production for various models by minimizing the mold replacing time.
▶ Specifications
Machine Model |

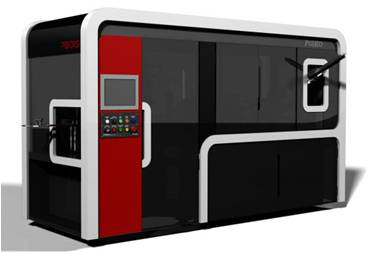

PB01 |
|---|---|
| - Machine Capacity: | 1,700 BPH(Based on 14gr.500ml Mineral Water Bottle) |
| - Whole Exterior Size and Weight information(Overall Size is depend on final layout with feeding sytem) | |
| (a) Dimension | Machine: 1,275mm(D)x4,237mm(L)x2,270mm(H) Overall Size: 3,787mm(D)x8,588mm(L)x2,800mm(H) |
| (b) Weight: | Machine: 2,000kgs(Only blower) Preform Feeding System: 400Kgs |
| - Machine General Specification | |
| (a) Available Bottle Size(Max.) | |
| 1) Bottle Diameter | 117 mm |
| 2) Bottle Volume: | 2.0 L |
| 3) Bottle Height under Neck: | 340 mm |
| 4) Neck Diameter: | 38.5 mm |
| (b) Machine Energy Consumption | |
| 1) Number of Lamps(2Kw/each): | 27EA |
| 2) Heating Oven Box: | 3EA |
| 3) Normal Energy consumption:: | 30 Kw/h(included motor control) |
| 4) Compress Air pressure: | 6~8kg/㎠(5.5~6kg/㎠) |
| 5) Operating air consumption: | 20Nm3/hour |
| 6) Blowing Pressure: | 30~40kg/㎠ |
| 7) Blowing Air consumption: | About 62 Nm3/hour |
| (c) Electrical Capacity | |
| 1) Machine Running by: | 380/400/440VAC, 50/60Hz, 3Phases |
| 2) Total Heating Power: | 67.5 Kw/h |
| 3) Required Max Utilities construction: | 75 Kw/h |
| (d) Machine Main Features | |
| 1) No. of Cavity: | 1 Cavity |
| 2) Heating Lamp: | Halogen Lamp, IR industrial reflector coating |
| 3) Lamp lift cycle | 5000 hrs (Averages by Supplier). |
| - Origin for Machine Operation.(It maybe changed in detailed design stage without notice) | |
| ▪ HMI | COMFILE (Made in korea) |
| ▪ PLC | Rexroth, Germany |
| ▪ Motor: | SEW/ Rexroth, Germany |
| ▪ Servo Control: | Bosch Rexroth, Germany |
| ▪ Motor Control: | LS, Korea |
▶ Lay out
▶ Specifications
Machine Model |

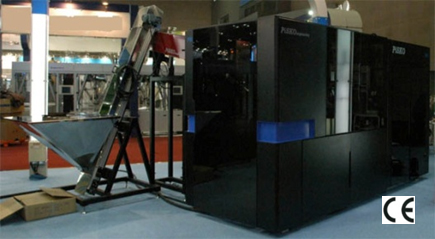

PB02 |
|---|---|
| - Machine Capacity: | 3,000 BPH(Based on 14gr. 500ml Mineral Water Bottle) |
| - Whole Exterior Size and Weight information(Overall Size is depend on final layout with feeding sytem) | |
| (a) Dimension | Machine: 1,706mm(D)x4,659mm(L)x2,270mm(H) Overall Size: 4,106mm(D)x6,787mm(L)x2,783mm(H) |
| (b) Weight: | Machine: 2,500kgs(Only blower) Preform Feeding System: 700Kgs |
| - Machine General Specification | |
| (a) Available Bottle Size(Max.) | |
| 1) Bottle Diameter | 117 mm |
| 2) Bottle Volume: | 2.0 L |
| 3) Bottle Height under Neck: | 340 mm |
| 4) Neck Diameter: | 38.5 mm |
| (b) Machine Energy Consumption | |
| 1) Number of Lamps(2Kw/each): | 27EA |
| 2) Heating Oven Box: | 3EA |
| 3) Normal Energy consumption:: | 40 Kw/h(included motor control) |
| 4) Low air pressure: | 6~8 bar |
| 5) Low air pressure consumption: | 40 Nm3/hour |
| 6) Blowing Pressure: | 35 bar |
| 7) Blowing Air consumption: | About 104 Nm3/hour |
| (c) Electrical Capacity | |
| 1) Machine Running by | 380V, 50/60Hz, 3Phases |
| 2) Total Heating Power: | 60 Kw/h |
| 3) Required Max Utilities construction: | 60 Kw/h |
| (d) Machine Main Features | |
| 1) No. of Cavity: | 2 Cavity |
| 2) Heating Lamp: | Halogen Lamp, IR industrial reflector coating |
| 3) Lamp lift cycle: | 5000 hrs (Averages by Supplier). |
| - Origin for Machine Operation.(It maybe changed in detailed design stage without notice) | |
| HMI: | COMFILE (Made in korea) |
| PLC: | Rexroth, Germany |
| Motor: | SEW/ Rexroth, Germany |
| Servo Control: | Bosch Rexroth, Germany |
| Motor Control: | LS, Korea |
▶ Lay out
▶ Specifications
Machine Model |

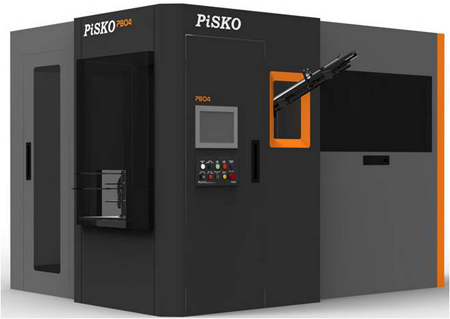

PB04 |
|---|---|
| - Machine Capacity: | 6,000BPH(Based on 14gr.500ml Mineral Water Bottle) |
| - Whole Exterior Size and Weight information(Overall Size is depend on final layout with feeding sytem) | |
| (a) Dimension | Machine: 2,835mm(D)x4289mm(L)x2,600mm(H) Overall Size: 5,770mm(D)x5,978mm(L)x2,604mm(H) |
| (b) Weight: | Machine: 4,300kgs(Only blower) Preform Feeding System: 1,000Kgs |
| - Machine General Specification | |
| (a) Available Bottle Size(Max.) | |
| 1) Bottle Diameter | 117 mm |
| 2) Bottle Volume: | 2.0 L |
| 3) Bottle Height under Neck: | 340 mm |
| 4) Neck Diameter: | 38.5 mm |
| (b) Machine Energy Consumption | |
| 1) Number of Lamps(2Kw/each): | 48 EA |
| 2) Heating Oven Box: | 6EA |
| 3) Normal Energy consumption:: | Less than 80 Kw/h(included all auxiliaries) |
| 4) Service Air pressure: | Generated by ARS |
| 5) Bottle Bottom Cooling Air: | Generated by ARS |
| 6) Compress Air pressure: | 6~8kg/㎠(5.5~6kg/㎠) |
| 7) Blowing Pressure: | 30~35kg/㎠ |
| 8) Blowing Air consumption: | about 210 Nm3/hour |
| (c) Electrical Capacity | |
| 1) Machine Running by: | 380/400/440VAC, 50/60Hz, 3Phases |
| 2) Total Heating Power: | 120 Kw/h |
| 3) Required Max Utilities construction: | 120 Kw/h |
| (d) Machine Main Features | |
| 1) No. of Cavity: | 4 Cavity |
| 2) Heating Lamp: | Halogen Lamp, IR industrial reflector coating |
| 3) Lamp lift cycle | 5000 hrs (Averages by Supplier). |
| - Origin for Machine Operation. | |
| ▪ HMI | BNR, Austria |
| ▪ PLC | BNR, Austria |
| ▪ Servo Motor: | BNR, Austria |
| ▪ Servo Drive: | BNR, Austria |
▶ Lay out
▶ Specifications
Machine Model |

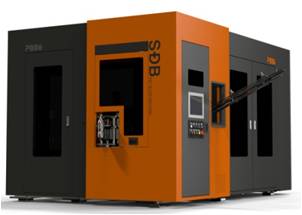

PB06 |
|---|---|
| - Machine Capacity: | 10,000 BPH(based on14gr.500ml mineral water bottle) |
| - Whole Exterior Size and Weight information(Overall Size is depend on final layout with feeding system) | |
| (a) Dimension | .Machine: 2,835mm(D)x4,289mm(L)x2,600mm(H) .Overall Size: 5,770mm(D)x6,520mm(L)x3,100mm(H) .Weight: Machine: 5,000kgs (Only Blower Machine) .Preform Feeding System: 1,300Kgs |
| - Machine General Specification | |
| (a) Available Bottle Size(Max.) | |
| 1) Bottle Diameter | 117 mm |
| 2) Bottle Volume: | 2.0 L |
| 3) Bottle Height under Neck: | 340 mm |
| 4) Neck Diameter: | 38.5 mm |
| (b) Machine Energy Consumption | |
| 1) Number of Lamps(2Kw/each): | 64 EA |
| 2) Heating Oven Box: | 8 EA |
| 3) Normal Energy consumption:: | Less than 100 Kw/h(included motor control) |
| 4) Service Air pressure: | Generated by ARS |
| 5) Bottle Bottom Cooling Air: | Generated by ARS |
| 6) Blowing Pressure: | 30~35kg/㎠ |
| 7) Blowing Air consumption: | about 350 Nm3/hr |
| (c) Electrical Capacity | |
| 1) Machine Running by: | 380/400/440VAC, 50/60Hz, 3Phases |
| 2) Total Heating Power: | 160 Kw/h |
| 3) Required Max Utilities construction: | 160 Kw/h |
| (d) Machine Main Features | |
| 1) No. of Cavity: | 6 Cavity |
| 2) Heating Lamp: | Halogen Lamp, IR industrial reflector coating |
| 3) Lamp lift cycle | 5000 hrs (Averages by Supplier). |
| - Origin for Machine Operation. | |
| ▪ HMI | BNR, Austria |
| ▪ PLC | BNR, Austria |
| ▪ Servo Motor: | BNR, Austria |
| ▪ Servo Drive: | BNR, Austria |

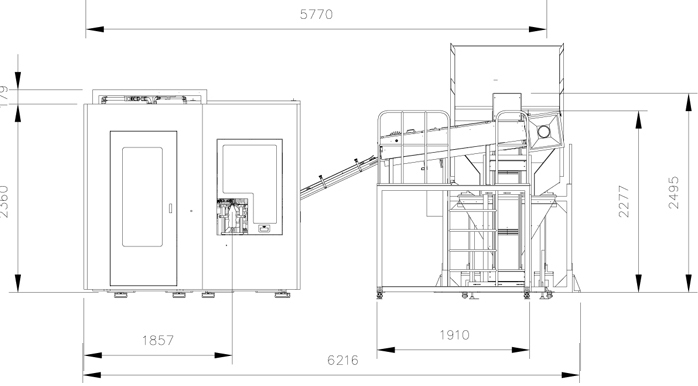

▶ Lay out
▶ Specifications
Machine Model |

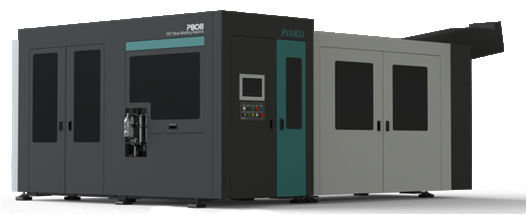

PB08 |
|---|---|
| - Machine Capacity: | 14,400 BPH(Based on 14gr.500ml mineral water bottle) |
| - Whole Exterior Size and Weight information(Overall Size is depend on final layout with feeding system) | |
| (a) Dimension | .Machine: 3,920mm(D)x5,092mm(L)x2,600mm(H) .Overall Size: 3,920mm(D)x9,162mm(L)x3,150mm(H) |
| (b) Weight: | Machine: 6,800kgs(Only blower) Preform Feeding System: 1,500Kgs |
| - Machine General Specification | |
| (a) Available Bottle Size(Max.) | |
| 1) Bottle Diameter | 117 mm |
| 2) Bottle Volume: | 2.0 L |
| 3) Bottle Height under Neck: | 340 mm |
| 4) Neck Diameter: | 38.5 mm |
| (b) Machine Energy Consumption | |
| 1) Number of Lamps(2Kw/each): | 80 EA |
| 2) Heating Oven Box: | 10 EA |
| 3) Normal Energy consumption:: | Less than 120 Kw/h(included all auxiliaries) |
| 4) Service Air pressure: | Generated by ARS |
| 5) Operating air consumption: | Generated by ARS |
| 6) Blowing Pressure: | 30~35kg/㎠ |
| 7) Blowing Air consumption: | about 463 Nm3/hr |
| (c) Electrical Capacity | |
| 1) Machine Running by: | 380/400/440VAC, 50/60Hz, 3Phases |
| 2) Total Heating Power: | 200 Kw/h |
| 3) Required Max Utilities construction: | 200 Kw/h |
| (d) Machine Main Features | |
| 1) No. of Cavity: | 8 Cavity |
| 2) Heating Lamp: | Halogen Lamp, IR industrial reflector coating |
| 3) Lamp lift cycle | 5000 hrs (Averages by Supplier). |
| - Origin for Machine Operation. | |
| ▪ HMI | BNR, Austria |
| ▪ PLC | BNR, Austria |
| ▪ Servo Motor: | BNR, Austria |
| ▪ Servo Control: | BNR, Austria |
▶ Lay out
▶ Specifications
Machine Model |
PB10 |
|---|---|
| - Machine Capacity: | 18,000 BPH(Based on 14gr.500ml Mineral Water Bottle) |
| - Whole Exterior Size and Weight information(Overall Size is depend on final layout with feeding system) | |
| (a) Dimension | .Machine: 3,920mm(D)x5,092mm(L)x2,600mm(H) .Overall Size: 3,920mm(D)x9,162mm(L)x3,150mm(H) |
| (b) Weight: | Machine: 6,800kgs(Only blower) Preform Feeding System: 1,500Kgs |
| - Machine General Specification | |
| (a) Available Bottle Size(Max.) | |
| 1) Bottle Diameter | 117 mm |
| 2) Bottle Volume: | 2.0 L |
| 3) Bottle Height under Neck: | 340 mm |
| 4) Neck Diameter: | 38.5 mm |
| (b) Machine Energy Consumption | |
| 1) Number of Lamps(2Kw/each): | 80 EA |
| 2) Heating Oven Box: | 10 EA |
| 3) Normal Energy consumption:: | Less than 120 Kw/h(included all auxiliaries) |
| 4) Service Air pressure: | Generated by ARS |
| 5) Operating air consumption: | Generated by ARS |
| 6) Blowing Pressure: | 30~35kg/㎠ |
| 7) Blowing Air consumption: | about 463 Nm3/hr |
| (c) Electrical Capacity | |
| 1) Machine Running by: | 380/400/440VAC, 50/60Hz, 3Phases |
| 2) Total Heating Power: | 200 Kw/h |
| 3) Required Max Utilities construction: | 200 Kw/h |
| (d) Machine Main Features | |
| 1) No. of Cavity: | 10 Cavity |
| 2) Heating Lamp: | Halogen Lamp, IR industrial reflector coating |
| 3) Lamp lift cycle | 5000 hrs (Averages by Supplier). |
| - Origin for Machine Operation. | |
| ▪ HMI | BNR, Austria |
| ▪ PLC | BNR, Austria |
| ▪ Servo Motor: | BNR, Austria |
| ▪ Servo Drive: | BNR, Austria |
▶ Lay out
▶ Specifications
Machine Model |

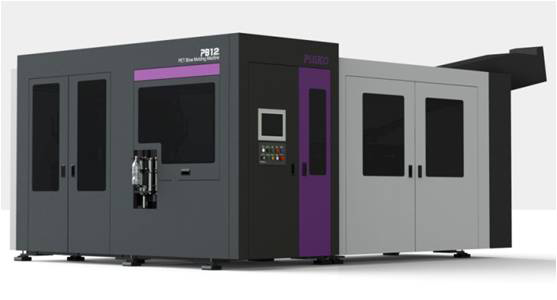

PB12 |
|---|---|
| - Machine Capacity: | 24,000 BPH(Based on 14gr.500ml Mineral Water Bottle) |
| - Whole Exterior Size and Weight information(Overall Size is depend on final layout with feeding system) | |
| (a) Dimension | .Machine: 3,920mm(D)x5,452mm(L)x2,600mm(H) .Overall Size: 3,920mm(D)x9,412mm(L)x3,180mm(H) |
| (b) Weight: | Machine: 8,000kgs(Only blower) Preform Feeding System: 1,800Kgs |
| - Machine General Specification | |
| (a) Available Bottle Size(Max.) | |
| 1) Bottle Diameter | 117 mm |
| 2) Bottle Volume: | 2.0 L |
| 3) Bottle Height under Neck: | 340 mm |
| 4) Neck Diameter: | 38.5 mm |
| (b) Machine Energy Consumption | |
| 1)Number of Lamps(2.5Kw/each): | 96 EA |
| 2) Heating Oven Box: | 12 EA |
| 3) Normal Energy consumption:: | Less than 120 Kw/h(included motor control) |
| 4) Service Air pressure: | Generated by ARS |
| 5) Bottle Bottom Cooling Air: | Generated by ARS |
| 6) Blowing Pressure: | 30~35kg/㎠ |
| 7) Blowing Air consumption: | About 977 Nm3/hr |
| (c) Electrical Capacity | |
| 1) Machine Running by: | 380 VAC, 50/60Hz, 3Phases |
| 2) Total Heating Power: | 240 Kw/h |
| 3) Required Max Utilities construction: | 240 Kw/h |
| (d) Machine Main Features | |
| 1) No. of Cavity: | 12 Cavity |
| 2) Heating Lamp: | Halogen Lamp, IR industrial reflector coating |
| 3) Lamp lift cycle | 5000 hrs (Averages by Supplier). |
| - Origin for Machine Operation. | |
| ▪ HMI | BNR, Austria |
| ▪ PLC | BNR, Austria |
| ▪ Servo Motor: | BNR, Austria |
| ▪ Servo Drive: | BNR, Austria |
▶ Lay out
▶ Specifications
Machine Model |

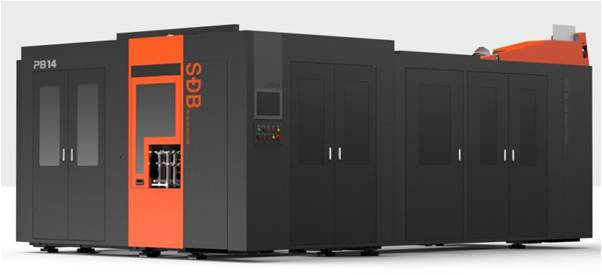

PB14 |
|---|---|
| - Machine Capacity: | 24,000 BPH(Based on 14gr.500ml Mineral Water Bottle) |
| - Whole Exterior Size and Weight information(Overall Size is depend on final layout with feeding system) | |
| (a) Dimension | .Machine: 4,290mm(D)x6,003mm(L)x2,600mm(H) .Overall Size: 4,290mm(D)x12,169mm(L)x3,178mm(H) |
| (b) Weight: | Machine: 10,000kgs(Only blower) Preform Feeding System: 2,000Kgs |
| - Machine General Specification | |
| (a) Available Bottle Size(Max.) | |
| 1) Bottle Diameter | 117 mm |
| 2) Bottle Volume: | 2.0 L |
| 3) Bottle Height under Neck: | 340 mm |
| 4) Neck Diameter: | 38.5 mm |
| (b) Machine Energy Consumption | |
| 1)Number of Lamps(2.5Kw/each): | 112 EA |
| 2) Heating Oven Box: | 14 EA |
| 3) Normal Energy consumption:: | Less than 140 Kwh(included motor control) |
| 4) Service Air pressure: | Generated by ARS |
| 5) Operating air consumption: | Generated by ARS |
| 6) Blowing Pressure: | 30~35kg/㎠ |
| 7) Blowing Air consumption: | About 900 Nm3/hour |
| (c) Electrical Capacity | |
| 1) Machine Running by: | 380 VAC, 50/60Hz, 3Phases |
| 2) Total Heating Power: | 280 Kw/h |
| 3) Required Max Utilities construction: | 280 Kw/h |
| (d) Machine Main Features | |
| 1) No. of Cavity: | 14 Cavity |
| 2) Heating Lamp: | Halogen Lamp, IR industrial reflector coating |
| 3) Lamp lift cycle | 5000 hrs (Averages by Supplier). |
| - Origin for Machine Operation. | |
| ▪ HMI | BNR, Austria |
| ▪ PLC | BNR, Austria |
| ▪ Servo Motor: | BNR, Austria |
| ▪ Servo Drive: | BNR, Austria |
▶ Lay out
▶ Specifications

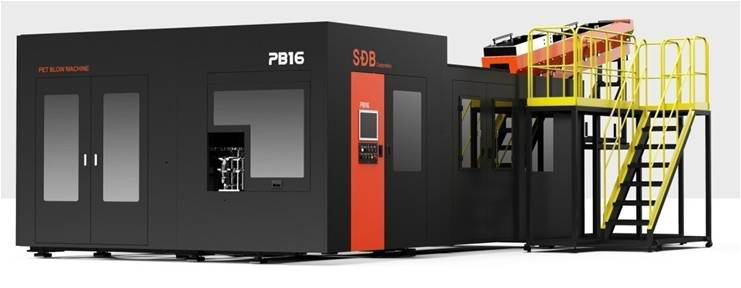

Machine Model |
PB16 |
|---|---|
| - Machine Capacity: | 32,000BPH(Based on 14gr.500ml Mineral Water Bottle) |
| - Whole Exterior Size and Weight information(Overall Size is depend on final layout with feeding system) | |
| (a) Dimension | .Blower: 4,290mm(D)x6,443mm(L)x2,600mm(H) .Overall Size: 4,290mm(D)x12,450mm(L)x3,180mm(H) |
| (b) Weight: | Machine: 10,000kgs(Only blower) Preform Feeding System: 2,000Kgs |
| - Machine General Specification | |
| (a) Available Bottle Size(Max.) | |
| 1) Bottle Diameter | 117 mm |
| 2) Bottle Volume: | 2.0 L |
| 3) Bottle Height under Neck: | 340 mm |
| 4) Neck Diameter: | 38.5 mm |
| (b) Machine Energy Consumption | |
| 1)Number of Lamps(2.5Kw/each): | 128 EA |
| 2) Heating Oven Box: | 16 EA |
| 3) Normal Energy consumption:: | 130 Kw/h(included all auxiliaries) |
| 4) Service Air pressure: | Generated by ARS |
| 5) Operating air consumption: | Generated by ARS |
| 6) Blowing Pressure: | 30~35kg/㎠ |
| 7) Blowing Air consumption: | About 1131 Nm3/hour |
| (c) Electrical Capacity | |
| 1) Machine Running by: | 380 VAC, 50/60Hz, 3Phases |
| 2) Total Heating Power: | 320 Kw/h |
| 3) Required Max Utilities construction: | 250 Kw/h |
| (d) Machine Main Features | |
| 1) No. of Cavity: | 16 Cavity |
| 2) Heating Lamp: | Halogen Lamp, IR industrial reflector coating |
| 3) Lamp lift cycle | 5000 hrs (Averages by Supplier). |
| - Origin for Machine Operation. | |
| ▪ HMI | BNR, Austria |
| ▪ PLC | BNR, Austria |
| ▪ Servo Motor: | BNR, Austria |
| ▪ Servo Drive: | BNR, Austria |

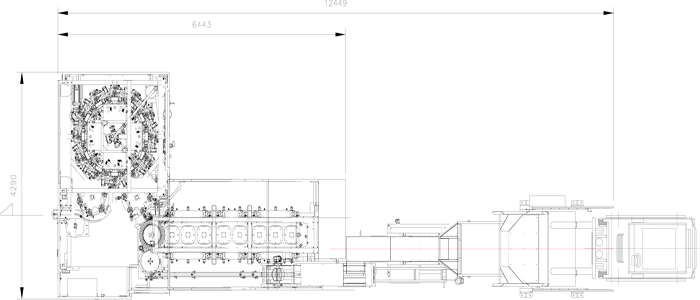

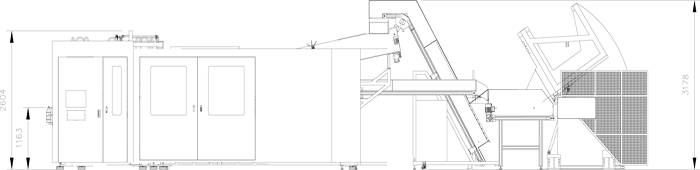

▶ Lay out
