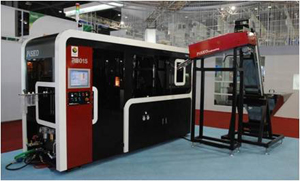

| ▶ PB01 | - The machine, 2 axis stretching rod blow molding machine can run & produce a bottles both for normal PET bottle up to 2 litter volume and heat resistant bottle by single machine.
- Each cavity drive open/clos servo drives - A djustment speed to Stretching Rod (Each cavity servo drives) - No belt, highest flexibility - Real time synchronization - Fully sdjustable from HMI - Pisko Stretching Blow molding machine is optimized design for small quantity batch productions via minimized job change & down time reduction. - CE Certification (Machine Model: PB01, PB02, PB04) - HR Bottle : 700 BPH/ Cavity / filling Temp. 90℃ / 2 liter rectangle (performance in JAPAN) - Certificate of Good Design Selection by the Korean Ministry of Commerce
|
 |
|

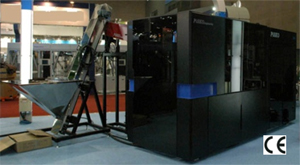

| ▶ PB02 | |
 |
|

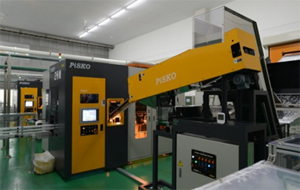

| ▶ PB04 | |
 |
|

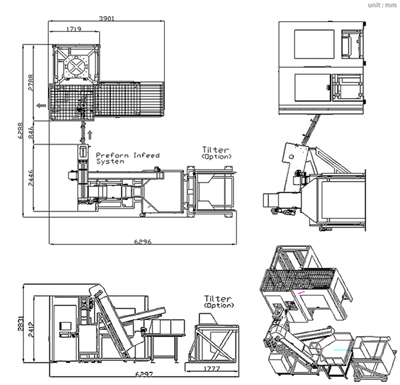

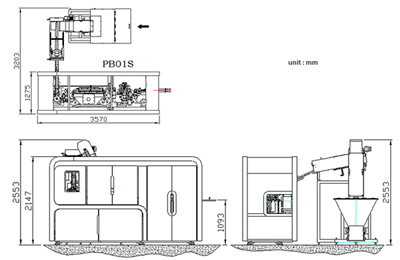

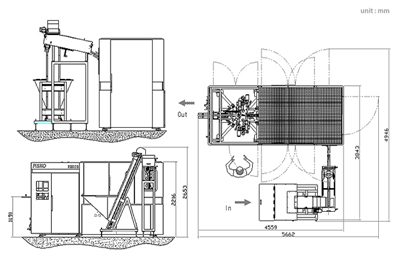

| - Layout |
| ▶ PB01 |
 |
| ▶ PB02 |
 |
| ▶ PB04 |
 |
- Machine Specification
ITEM |
UNIT |
PB01 |
PB02 |
PB04 |
PB04(H)/th>
|
|---|---|---|---|---|---|
| Production Output Rate | |||||
| NR 0.5 Liter / 2.0 Liter | BPH | 1,700 / 1,200 | 3,000 / 2,400 | 6,000 / 4,800 | 6,000 / 4,800 |
| HR 0.5 Liter / 2.0 Liter | BPH | 1,000 / 700 | 2,000 / 1,400 | 4,000 / 2,800 | |
| Bottle Size Application(Max) | |||||
| Diameter | mm | 117/130 | 117/130 | 117/130 | 117/130 |
| Volume | Liter | 2.0 | 2.0 | 2.0 | 2.0 |
| Height under Neck | mm | 340 | 340 | 340 | 340 |
| Neck Diameter | mm | 38 | 38 | 38 | 38 |
| Electrical Conditioning | |||||
| No. of Oven / Lamps (2 kwh/EA) |
EA | 2 / 18 | 3 / 27 | 3 / 27 | 3 / 27 |
| Total Heating Power | KWh | 36 | 54 | 80 | 80 |
| Machine configuration | |||||
| No. of Cavity / Spindle | Cavity / EA | 1 / 61 | 2 / 73 | 4 / 75 | 4 / 75 |
| Configuration size | mm | 3,570 x 1,280 x 2,150 | 4,245 x 1,710 x 2,200 | 3,120 x 2,680 x 2,600 | 3,120 x 2,680 x 2,600 |
| Machine Weight | Tons | 2.7 | 3.5 | 4.3 | 4.3 |
| Utility | |||||
| Operating air pressure | Kg/Cm2 | 8~10 | 8~10 | 8~10 | 8~10 |
| Operating air consumption | Nm3/hr | 20 | 40 | 50 | 50 |
| Blowing pressure | Kg/Cm2 | 30~40 | 30~40 | 30~40 | 30~40 |
| Blowing Air consumption | Nm3/hr | 150 | 300 | 522 | 522 |
| Chilled Water Pressure | Kg/Cm2 | 2~4 | 2~4 | 2~4 | 2~4 |
| Chilled Water Flow Rate | m3/hr | 1.5~2.0 | 3.0~4.0 | 3.0~4.0 | 3.0~4.0 |
| Chilled Water Temperature | ℃ | 8~15 | 8~15 | 8~15 | 8~15 |
